Fan-Light Power Supplies

Platform Highlights

• Active PFC, flicker-free — PF>0.9, THD<10%
• Standby <0.5W, meeting EU & North America efficiency requirements
• Stepless lighting dimming
• Sine-wave sensorless FOC motor control — smooth, exceptionally quiet; 6 speeds, reverse, natural-wind mode
• Protections: lighting OVP/OCP/short-circuit; motor stall/phase-loss/over-power; system thermal regulation

Controller Models

Bedroom Fan-Light Controller Series

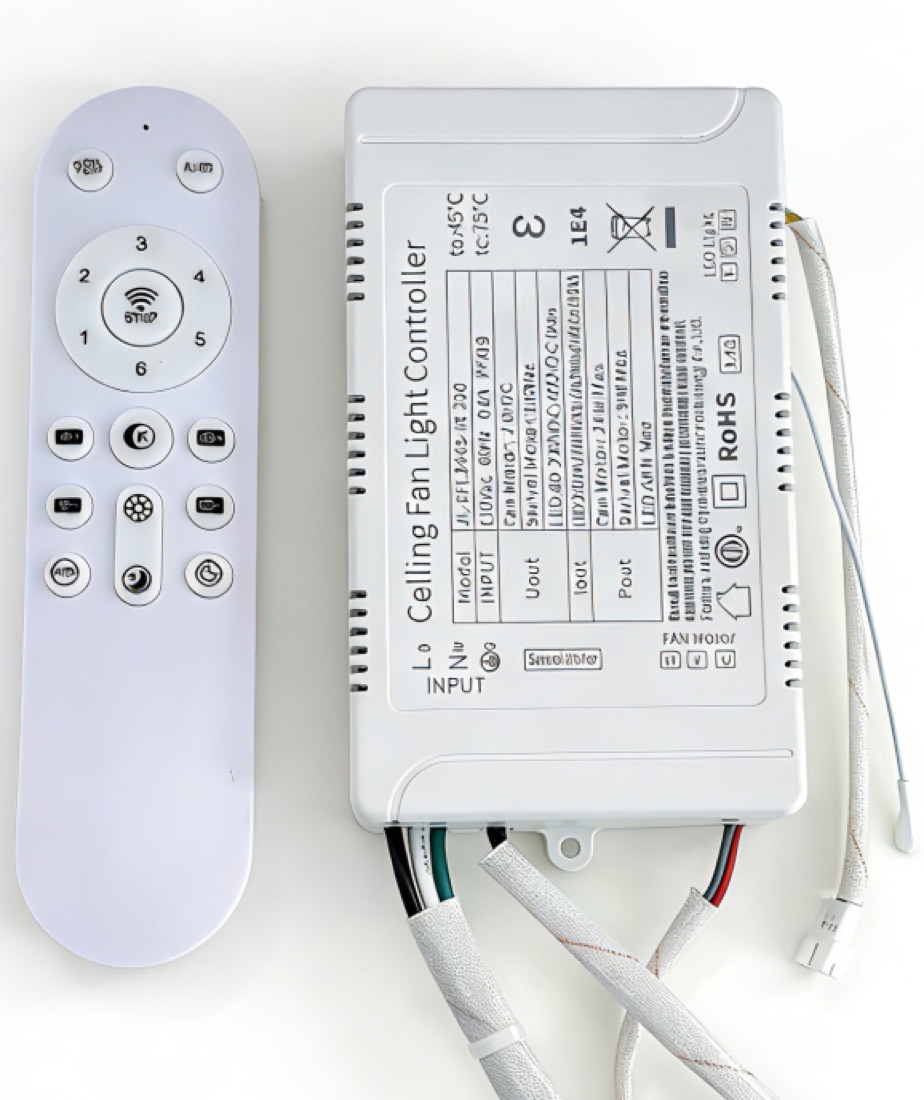

Bedroom Fan-Light Controller

• Four versions: non-isolated / dual-isolated / RGB / voice-WiFi-BT remote
• Sine-wave sensorless FOC, quiet running
• Case 127×77×26mm

View full specifications

Input Voltage	90-264Vac 50/60Hz
Power Factor	>0.9
Fan Motor Output	24W Max · 24VDC · 1.0A
Oscillating Motor	5W Max (220Vac or 24Vac version)
LED Output	45-48W Max (isolated / non-isolated options)
RGB Output (option)	10W · 5VDC · 2A
Remote (option)	Voice / WiFi / 2.4G Bluetooth
Surge	>2000V
Operating Temp	-20°C to +45°C
Certifications	CCC, CE, CB, ETL, FCC, SAA, KC, PSE, RF, RoHS
Case Size	127×77×26mm

Retractable & Straight-Blade Controller Series

Retractable / Straight-Blade Fan-Light Controller

• Two versions: switch-CCT / stepless dimming
• 36W motor output for larger airflow models
• Full lighting OVP / OCP / short protection

View full specifications

Input Voltage	90-264Vac 50/60Hz
Power Factor	>0.9
Motor Output	36W Max · 24VDC · 1.5A
LED Output	Switch-CCT: AC mains; dimming: 30W · 36VDC · 800mA
Surge	>2000V
Operating Temp	-20°C to +45°C
Certifications	CCC, CE, CB, ETL, FCC, SAA, KC, PSE, RF, RoHS
Case Size	119×60×29mm (CCT) / 145.7×85.5×29mm (dimming)
